Stahl Steckverbinder miniCLIX 4 P + PE 24 - 400V 202801

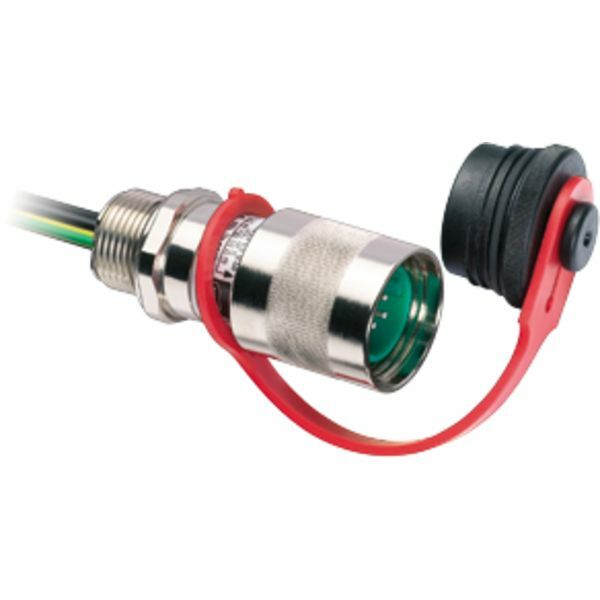

R.STAHL Series 8591/1 and 8591/4 4-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 250 V/10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Device plug >
2 dm3, explosion-protected, Type : 8591/467-01-3022, AC rated operational voltage : 24 400 V, DC rated operational voltage : 0 V, Detailed number of poles : 4 P + PE, Coding (clock hour position) : 1, Recommended colour ring coding: without, Enclosure material : Nickel-plated brass, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC 60 °C Db, min. ambient temperature : -55 °C, max. ambient temperature : +40 °C, Locking device present : No, Connection type : Ethernet, Cable entry : RJ45-male, For further information, see : r-stahl.com WebCode 8591A

Lagerkennzeichen: Nichtlagerartikel (V) - Dieser Artikel kann bei positiven Lagerbestand nur noch abverkauft, jedoch nicht mehr beim Hersteller nachgeordert werden. Achten Sie daher auf die Livelagerabfrage bzw. auf die Statusmeldung unseres Lagers im Warenkorb.

Information des Herstellers zur Herstellerartikelnummer 202801 – Link 1
